Product Description

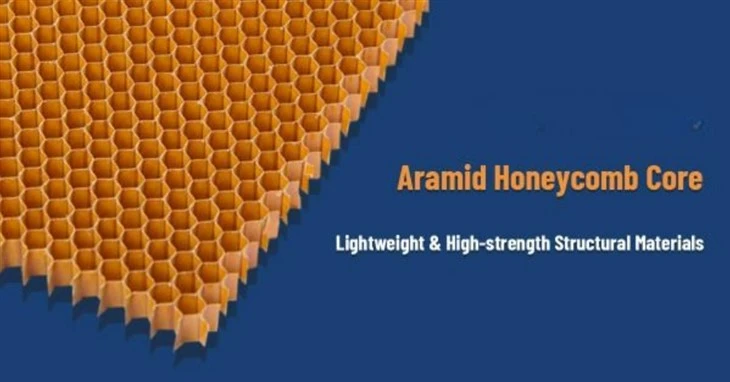

Aramid honeycomb is a honeycomb structure made of aramid fibers. Aramid fiber is a type of high-performance synthetic fiber known for its excellent strength, heat resistance, and wear resistance.
Aramid honeycomb is commonly used as the core material for sandwich panels, providing structural support and stiffness while minimizing weight.
As a sturdy, lightweight, and buoyant alternative to solid panels, these aramid honeycomb cores are used to manufacture interior wall panels and flooring in marine, structural, and industrial applications. Compared to aluminum honeycomb cores, they are lightweight and more flexible, so you often find them lined on ships and high-speed cars. However, they are not as sturdy as aluminum cores. Aramid cores can also resist flames and extinguish themselves without melting or dripping, making them thermal and electrical insulators.
Composite Fiber Aramid Honeycomb Panels
Carbon or glass fibers are sandwiched with aramid honeycomb cores to enhance rigidity. These panels are sturdy but lightweight, and do not conduct heat. They are commonly used as wall panels in structural and insulation applications, and are lightweight alternatives to solid composite materials and aluminum honeycomb panels.
Carbon fiber panels are stronger and harder than fiberglass panels, so they can resist deformation caused by bending, twisting, or buckling. However, they will shatter under high impact force. These panels are lighter than fiberglass panels. However, they are conductive, so do not use them around electrical components.
Fiberglass panels are commonly used around electrical components because they are good electrical insulators. They are better at resisting collisions and cracks caused by impacts than carbon fiber panels, but they are not as sturdy or lightweight.
Features
The hexagonal structure of aramid honeycomb is one of the most effective structures that can fill space. The hexagonal structure has stable connections and can maximize the use of aramid materials, giving the honeycomb structure maximum strength and stiffness. And it can evenly distribute the load, thereby improving the durability and compressive strength of the material.
A.The resin has good permeability.
B.High specific strength and stiffness.
C.Excellent corrosion resistance and self extinguishing performance.
D.Better weather resistance and insulation.
E.Good electromagnetic wave penetration performance.
F.High stability.
Technica Data
Aramid Honeycomb VS Aluminum Honeycomb
Typical uses
The honeycomb sandwich structure based on aramid honeycomb core material is an important energy absorbing material. The obvious advantages of amino honeycomb are low thermal expansion and thermal conductivity, high heat resistance and fire resistance. Its dimensional stability under humid and hot conditions makes it suitable for various high-end applications. Aramid honeycomb core can be composite with carbon fiber prepreg, glass fiber prepreg, metal plate, etc. to form composite plates of various thicknesses and shapes.
Aramid honeycomb is widely used in fields such as aerospace, automotive, electronics, and protection. Such as ship bulkhead connecting plates, rotor blades, fuel tanks, antennas, radar, flooring, hull, racing car body, ground antennas, etc.
What is the difference between Regular Hexagonal Honeycomb Core and Overexpanded Honeycomb Core?
What should be noted when CNC machine tools process aramid honeycomb panels?
Aramid honeycomb panels have the characteristics of lightweight, high strength, and structural stability, but they may also be sensitive and susceptible to thermal damage, delamination, or tool wear. Therefore, it is necessary to fully study their processing requirements and standards before processing.
Due to the particularity of aramid honeycomb materials, professional cutting tools designed for composite materials should be selected, such as those with special coatings to reduce friction and heat generation, while considering tool strength and durability to avoid fracture or excessive wear during processing.
Reasonably select cutting parameters such as cutting speed, feed rate, and cutting depth to avoid excessive cutting force causing internal damage to the material or generating excessive heat that affects material performance.
Determine precise machining routes and sequences, such as using multi axis linkage machining technology to ensure precise control of tool paths and prevent deformation or damage to material structures caused by machining stresses.
Design and use a suitable fixture system to ensure that the workpiece is firmly fixed while minimizing local stress concentration caused by clamping forces on the honeycomb panel.
Effective measures should be taken during the processing to avoid dust pollution and to prevent cutting waste (such as aramid fibers) from causing harm to the human body. Operators should wear appropriate personal protective equipment.
Based on the size, shape, and machining accuracy requirements of aramid honeycomb panels, select a suitable CNC machine model to ensure that the rigidity and stability of the machine can meet the machining requirements.
Comply with the operating procedures of CNC machine tools, including not opening the protective door of the machine tool at will, maintaining vigilance during the machining process, and setting up necessary safety protection devices.
For the fixation of aramid honeycomb panels, new fixing techniques may be adopted, such as double-sided tape or other efficient and economical fixing methods mentioned in the article, to ensure the stability of the workpiece during the processing, while avoiding damage to the panel surface and honeycomb structure.
In summary, when processing aramid honeycomb panels, meticulous planning and strict implementation are required from the grasp of material characteristics to the selection of specific process parameters, fixture design, safety protection, and workpiece fixing methods.
