Product Description
Glass fiber cloth is a new type of material made by weaving, which has excellent characteristics such as flame retardancy, corrosion resistance, high temperature resistance, low moisture absorption, and low deformation coefficient. This new material product has covered various fields such as electrical appliances, electronics, transportation, chemical engineering, construction engineering, thermal insulation and sound absorption, fire protection and environmental protection. It can also be used to manufacture copper-clad laminates, fireproof fabrics, silicone fabrics, etc.
Glass fiber cloth is divided into glass fiber untwisted coarse gauze, glass fiber fine cloth, glass fiber surface felt, polyester surface felt, untwisted coarse gauze seam woven composite felt, closed mold felt, glass fiber biaxial seam woven fabric, glass fiber triaxial seam woven fabric, glass fiber four-way seam woven fabric, and glass fiber short cut felt.
Below are separate introductions.
Glass fiber untwisted coarse gauze
Product Features
The warp and weft yarns are arranged in parallel in a flat shape, with uniform tension.
The fiber arrangement density is high, not easily deformed, and easy to use and operate.
Good adhesion, fast and complete resin penetration, improving production efficiency.
The product has high dry and wet strength, and good transparency.
Raw yarn type: alkali free, ECR.
Usage: Conventional universal type, lightweight for surfboards.
Specifications
Glass fiber fine cloth
Product Features
The warp and weft yarns are arranged in parallel in a flat shape, with uniform tension.
The fiber arrangement density is high, not easily deformed, and easy to use and operate.
The product has good fire resistance.
The product has a long service life.
Raw yarn type: alkali free, ECR.
Product density: 7628, 3732, 3784, 3788.
Product packaging and storage
The product is wrapped around a paper tube with an inner diameter of 76mm, wrapped with plastic film, and packaged with cardboard or kraft paper on the outside, placed vertically or horizontally. When loaded into a container, it can be loose or palletized. Unless otherwise specified, the product should be stored in a dry and cool place to prevent rain. It is recommended to control the temperature between 15 ℃ and 35 ℃, and the humidity between 35% and 65%. The product stack height should not exceed 2 layers.
Product specifications:

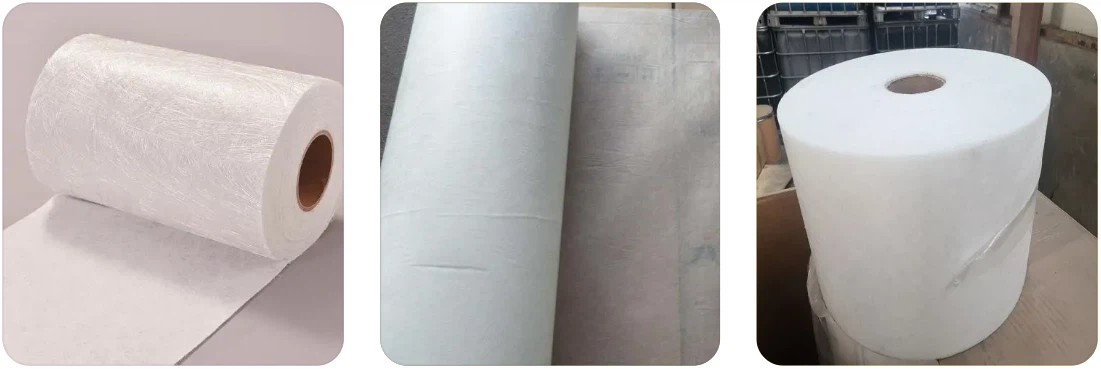

Glassfiber surface mat
Fiberglass surface felt is mainly used for the surface layer of various fiberglass products.
This product can significantly improve the surface corrosion resistance, pressure resistance, and leakage resistance of the product, and has the advantages of long-lasting service life. In addition, this product is also suitable for pipeline, spraying, molding, and other fiberglass forming technologies.
Product Features
Uniform mass per unit area.
The product is soft.
Resin penetration is fast and uniform, making it easy to eliminate bubbles and reduce resin consumption.
Smooth and aesthetically pleasing surface.
Classified by purpose: Hand lay up type, winding process type.
Product packaging and storage
The product is wrapped around a paper tube with an inner diameter of 100mm, wrapped with plastic film, and packaged with cardboard or kraft paper on the outside, placed vertically or horizontally. When loaded into a container, it can be loose or palletized.
Unless otherwise specified, the product should be stored in a dry and cool place to prevent rain.
Suggest controlling the temperature between 15 ℃ and 35 ℃, humidity between 35% and 65%: the product stack height should not exceed 2 layers.

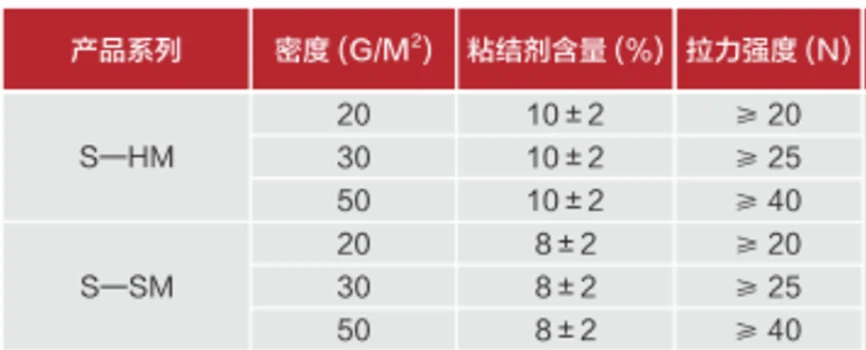

Product specification
S-HM: For Hand Lay-Up process
S-SM: For Filament winding process
Conventional width: 10001250mm, production range: 45-2800mm
The usual color is white, but we can also produce short cut felt in other colors through dyeing processes.
Polyester surface felt
Polyester surface felt is a unique production process and resin permeability treatment process for polyester fiber surface felt, which determines its characteristics of flat surface, uniform fiber dispersion, smooth hand feel, good breathability, and fast resin infiltration speed.
Product Features
Wear resistance performance;
Corrosion resistance performance;
UV resistance performance;
Mechanical damage resistance performance;
Surface smoothness;
High quality surface resin layer;
Protect the molds during the production process.
Applicable process
Fiberglass hand lay up molding, winding molding, extrusion molding, continuous flat plate, SMC, RTM, vacuum adsorption molding and other processes.
Twisted coarse gauze sewn composite felt
Twistless coarse gauze composite felt is a glass fiber consumable made by combining a layer of uniform and non oriented short cut raw silk with twisted coarse gauze, and then combining it with a coil structure or bonding it with adhesive. Its main end products include fiberglass hulls, car shells, panels, car doors, and profiles.

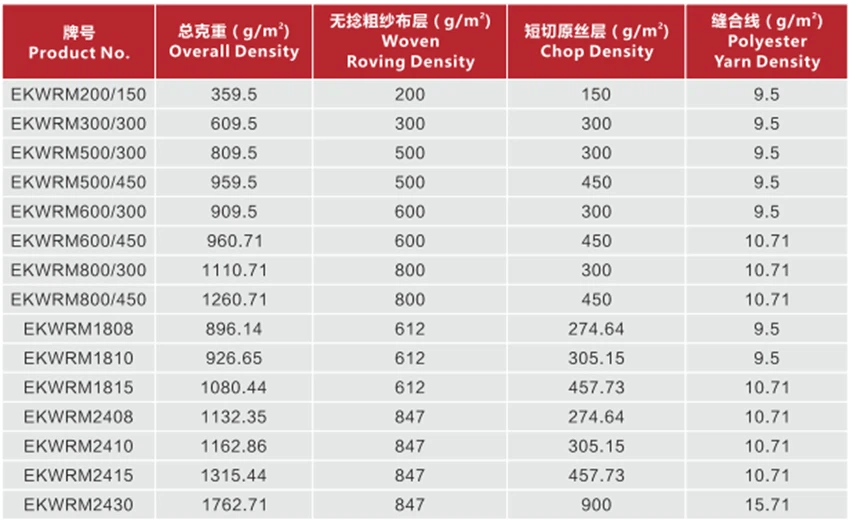

Product standard specifications
6. Closed mold felt
Closed mold felt, as the name suggests, refers to the glass fiber felt used in the closed mold process. We know that there are many closed mold processes, including common vacuum infusion, RTM, molding, etc. But the closed mold process here generally refers to the RTM process. Usually, the closed mold felt has three layers, with glass fiber short cut yarn as the upper and lower surface layers, and PP material flow guide felt in the middle, which is tied together with polyester thread to form a sandwich structure. Therefore, closed mold felt is also known as sandwich felt. Among them, short cut yarn is used as a reinforcing material to provide strength; PP felt plays a fast guiding role in the resin introduction process.
Product packaging and storage
The product is wrapped around a paper tube with an inner diameter of 76mm and a roll diameter of 275mm. It is wrapped in plastic film and packaged in cardboard boxes or kraft paper. When placed vertically or horizontally in a container, it can be loose or palletized. Unless otherwise specified, the product should be stored in a dry and cool place to prevent rain.
It is recommended to control the temperature between 15 ℃ and 35 ℃, and the humidity between 35% and 65%. The product stack height should not exceed 2 layers.

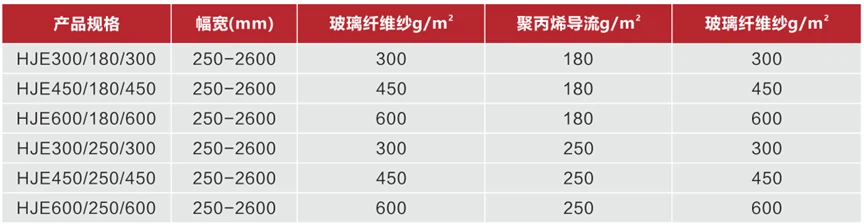

Product specification
Glass fiber biaxial seam woven fabric
Fiberglass biaxial seam woven fabric is made of untwisted coarse sand in the 0 °/90 ° direction or+45 °/-45 ° direction. After directional arrangement, the coil structure is woven and can be selected with or without felt according to the purpose. Mainly used in wind blades, shipbuilding industry, automotive industry, and sports equipment.
Product Features
No adhesive, suitable for various resin systems
Has good mechanical properties
Simple operation process and low cost

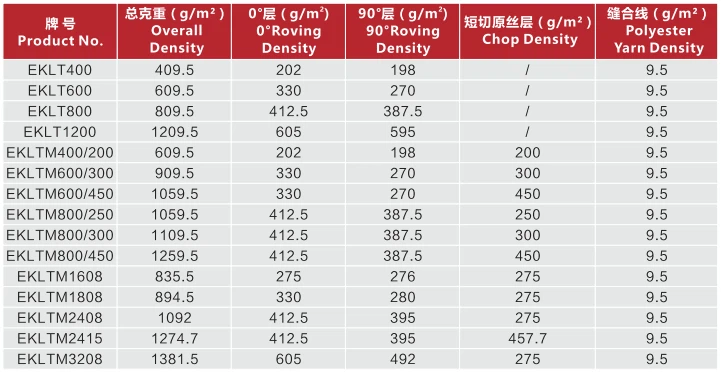

Product standard specifications
Product packaging and storage
The product is wrapped around a paper tube with an inner diameter of 76mm and a roll diameter of 275mm. It is wrapped in plastic film and packaged in cardboard or kraft paper, and placed vertically or horizontally.
When loaded into a container, it can be loose or palletized.
Unless otherwise specified, the product should be stored in a dry and cool place to prevent rain.
It is recommended to control the temperature between 15 ℃ and 35 ℃, and the humidity between 35% and 65%. The product stack height should not exceed 2 layers.
Glass fiber triaxial seam woven fabric
Fiberglass triaxial seam woven fabric is made of untwisted coarse sand arranged in the 0 °/+45 °/-45 ° direction or+45 ° 190 ° 1-45 ° direction, and woven in a wire structure. It can be selected with or without felt according to its purpose. Mainly used in wind blades, shipbuilding industry, automotive industry, and sports equipment.
Product Features
No adhesive, suitable for various resin systems with good mechanical properties, simple operation process, low cost
Product specifications:
Fiberglass four-way seam woven fabric
Fiberglass four axis seam woven fabric is made by arranging untwisted coarse sand in the 0 °/+45 °/90 °/-45 ° direction and weaving it into a coil structure. It can be selected with or without felt according to its application. Mainly used in wind blades, shipbuilding industry, automotive industry, and sports equipment.
Product Features
No adhesive, suitable for various resin systems
Has good mechanical properties, simple operation process, and low cost
Product standard specifications
glass fiber short cut felt
glass fiber short cut felt is made of glass fiber chopped strand through powder or lotion binder without directional bonding. Suitable for various resin reinforcement systems, such as unsaturated polyester resin, vinyl resin, and epoxy resin. Widely used in hand pasting, winding, molding and other molded products, such as shipbuilding, automobiles, cooling towers, bathroom appliances, anti-corrosion pipelines and other fiberglass products.
Product specifications:
