High-Performance PMI Foam Core + CNC Machining for Advanced Composite Structures

1. Introduction: From Raw Materials to Engineered Core Structures

In modern composite manufacturing, the difference between an average product and a high-performance structure is no longer determined by carbon fiber alone-it is defined by the core design and precision processing behind it.

Many manufacturers still purchase:

Raw foam sheets

Standard core materials

Semi-finished blocks

But face major challenges:

Poor bonding performance

Inconsistent structural strength

Excessive manual trimming

High material waste

Assembly misalignment

This is why forward-thinking companies are shifting toward a Carbon Fiber Structure Core Solution-a fully engineered approach that integrates:

👉 PMI foam core material selection
👉 Precision CNC machining
👉 Surface preparation for bonding
👉 Structural optimization design

We don't just supply foam.
We deliver ready-to-use engineered core structures that directly fit into your composite manufacturing process.

2. What is a Carbon Fiber Structure Core?

A carbon fiber structure typically consists of:

Outer skins (carbon fiber / fiberglass prepreg)

Inner core (foam or honeycomb)

This "sandwich structure" dramatically improves:

Strength-to-weight ratio

Bending stiffness

Impact resistance

Among all core materials, PMI foam is the preferred choice for high-performance applications.

3. Why PMI Foam is Ideal for Carbon Fiber Structures

3.1 High Temperature Resistance

PMI foam withstands:

Autoclave curing (120–180°C)

High-pressure processing

Unlike PVC or PET foam, PMI foam maintains:

Dimensional stability

Structural integrity

3.2 Exceptional Strength-to-Weight Ratio

PMI foam offers:

Ultra-low density (30–200 kg/m³)

High compressive strength

Excellent fatigue resistance

This enables:

👉 Lighter structures without compromising strength

3.3 Superior Machinability

PMI foam is ideal for:

CNC machining

Complex 3D shaping

Thin-wall structures

It produces:

Clean cutting edges

Smooth surfaces

Minimal deformation

3.4 Excellent Bonding Performance

PMI foam provides:

Closed-cell structure

Stable surface

High compatibility with epoxy systems

Result:

👉 Strong adhesion with carbon fiber skins

4. Our Core Solution: From Design to Finished Core

We provide a complete engineered solution, not just materials.

4.1 Engineering Support & Design Optimization

We work with your team to optimize:

Core thickness distribution

Density selection

Weight reduction strategy

Structural reinforcement areas

Example:

Instead of uniform thickness, we design:

Thick zones for load-bearing

Thin zones for weight saving

👉 Result: up to 20–30% weight reduction

4.2 Material Selection

We supply PMI foam in multiple densities:

We help you choose based on:

Load requirements

Processing method

Cost targets

4.3 CNC Machining of Core Structures

This is where most suppliers fail-and where we excel.

We provide:

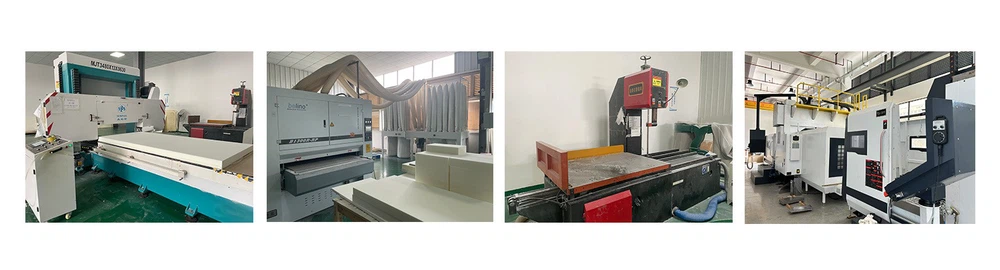

3-axis and 5-axis CNC machining

Complex contour shaping

High-precision tolerance (±0.1 mm)

Typical Machining Capabilities

3D curved surfaces

Sandwich panel cores

Structural inserts

Hollow weight-saving designs

Resin flow channels

Real CNC Parameters (Example)

Tool: 10mm flat + 10mm ball end mill

Spindle speed: 8000 RPM

Feed rate: 8000 mm/min

Step-over: 0.6 mm (finishing)

Fixation: Vacuum table

👉 These parameters ensure:

Clean surface

No tearing

Optimal bonding performance

4.4 Surface Preparation for Bonding

After machining, surface treatment is critical.

We provide:

Dust removal

Controlled sanding (optional)

Surface cleanliness verification

This ensures:

👉 Maximum adhesive strength

4.5 Pre-Assembly & Kit Supply

We can deliver:

Pre-cut core kits

Numbered components

Ready-to-layup structures

👉 Reduces your labor cost and assembly time

5. Applications of Carbon Fiber Core Solutions

5.1 Aerospace & UAV

Interior panels

UAV structures

Radomes

Requirements:

High temperature resistance

Lightweight

Precision

5.2 Automotive & Motorsport

Carbon fiber body panels

Structural reinforcements

Lightweight chassis components

5.3 Marine Industry

Yacht structures

Deck cores

High-performance boats

5.4 Sports Equipment

Bicycle frames

Racing components

High-end gear

6. Common Problems We Solve

Problem 1: Poor Fit of Core Material

Solution: Precision CNC machining ensures exact geometry

Problem 2: Weak Bonding

Solution: Controlled surface quality and proper machining

Problem 3: High Material Waste

Solution: Optimized design + CNC nesting

Problem 4: Long Production Time

Solution: Pre-machined core kits

7. PMI Foam vs Other Core Materials

👉 PMI foam is the best choice for high-end composite structures

8. Why Choose Our Carbon Fiber Core Solution

We are not just a supplier-we are a technical partner.

Our Advantages

Deep experience in composite structures

Advanced CNC machining capability

Engineering support

Stable quality control

Fast delivery

What Makes Us Different

Most suppliers sell:

👉 Foam sheets

We deliver:

👉 Engineered core structures ready for production

9. Workflow: From Drawing to Delivery

Receive your CAD files

Analyze structure and requirements

Optimize design

Select material

CNC machining

Quality inspection

Packaging and delivery

10. Future Trend: Integrated Core Manufacturing

The industry is moving toward:

Fully machined cores

Integrated structures

Reduced manual processing

Companies adopting this approach gain:

Higher efficiency

Lower cost

Better product performance

11. Conclusion

Carbon fiber performance is no longer limited by fiber itself-it is defined by the core inside.

By combining:

PMI foam

Precision CNC machining

Engineering optimization

We provide a solution that improves:

👉 Strength
👉 Weight
👉 Efficiency
👉 Cost

12. Call to Action

If you are working on carbon fiber structures and need:

High-performance PMI foam core

Precision CNC machining

Engineering support

We are ready to support your project.

👉 Send us your drawings today for a technical evaluation and quotation.
